HEAVY-DUTY LONG RANGE COMMUNICATION

PROFESSIONAL FM TRANSCEIVER

JT-598E

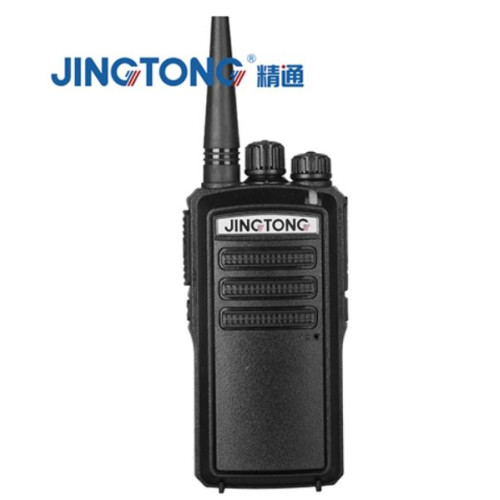

The Jington JT-598E is a professional FM transceiver characterized by a durable and fashionable design. Engineered for reliability in the field, it boasts a high-capacity 4800mAh Li-ion battery and a powerful 12W RF output to ensure long-lasting, long-range communication. With integrated safety features like an SOS function and emergency alerts, it is a versatile tool designed for professionals who require robust performance and clear audio in demanding environments.

File download

Share

  • RF Output Power: Selectable High/Low power at 12W/5W.
  • Signaling: Includes DCS/CTCSS functions for secure communication.
  • Safety Features: Equipped with an SOS function, emergency alert, and an alarm function between units.

  • Audio Optimization: Includes a COMP function and Chinese/English voice annunciation.

Features
Specifications
Frequency Range
VHF 136-174MHz +1
Channel Capacity
128
Operating Voltage
7.2V DC ± 15%
Antenna Impedance
50Ω
Frequency Stability
±2.5ppm
Operating Temperature
−30∘C to +60∘C
Weight
218g (with Li-ion battery)
Battery
4800mAh high Li-ion battery

Transmitter

  • RF Power Output: 12W/5W.

  • Modulation Type: FM.

  • Modulation Distortion: < 5%.

Receiver

  • Sensitivity: 0.18 $\mu$V (12dB SINAD).

  • Audio Power Output: 500mW.

  • Audio Distortion: < 5%.

  • FM Noise: 45dB / 40dB.
